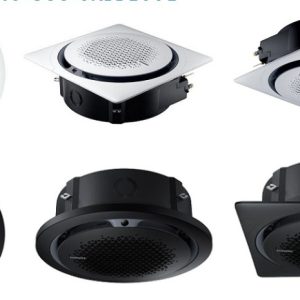

Dàn lạnh Cassette 360° SamSung AM090KN4DEH/EU
Liên Hệ
- Model :AM090KN4DEH/EU
- Bảo hành:24 tháng
- Công suất: 9.0 Kw / 30.700 btu
- Kiểu máy: Cassette 360°
- Xuất xứ:Korea
- Tình trạng:Còn hàng
Thông số kỹ thuật dàn lạnh AM090KN4DEH/EU :
| Model | AM090KN4DEH/EU | ||||
| Power Supply | Φ, #, V, Hz | 1,2,220-240,50 | |||
| Mode | – | HP/HR | |||
| Performance | Capacity (Nominal) | Cooling 2) | kW | 9.00 | |
| Btu/h | 30,700 | ||||
| Heating 2) | kW | 10.00 | |||
| Btu/h | 34,100 | ||||
| Power | Power Input (Nominal) | Cooling 1) | W | 55.00 | |
| Heating 2) | 55.00 | ||||
| Current Input (Nominal) | Cooling 1) | A | 0.42 | ||
| Heating 2) | 0.42 | ||||
| Fan | Type | – | Turbo Fan | ||
| Motor | Output x n | W | 65 x 1 | ||
| Air Flow Rate | H/M/L (UL) | CMM | 22.00/18.50/16.00 | ||
| l/s | 366.67/308.33/266.67 | ||||
| External Pressure | Min / Std / Max | mmAq | – | ||
| Pa | – | ||||
| Piping Connections | Liquid Pipe | Φ,mm | 9.52 | ||
| Φ, inch | 3/8″ | ||||
| Gas Pipe | Φ,mm | 15.88 | |||
| Φ, inch | 5/8″ | ||||
| Drain Pipe | Φ,mm | VP25 (OD 32,ID 25) | |||
| Field Wiring | Power Source Wire | mm2 | 1.5 ~ 2.5 | ||
| Transmission Cable | mm2 | 0.75 ~ 1.5 | |||
| Refrigerant | Type | – | R410A | ||
| Control Method | – | EEV INCLUDED | |||
| Sound | Sound Pressure | High / Mid / Low | dB(A) | 40.0/36.0/32.0 | |
| Sound Power | Cooling | 57.0 | |||
| Dimensions | Net Weight | kg | 21.00 | ||
| Shipping Weight | kg | 25.90 | |||
| Net Dimensions (W×H×D) | mm | 947 x 281 x 947 | |||
| Shipping Dimensions (W×H×D) | mm | 990 x 330 x 990 | |||
| Panel Size | Panel model | – | PC4NUDMAN | ||
| Panel Net Weight | kg | 3.60 | |||
| Shipping Weight | kg | 6.30 | |||
| Net Dimensions (W×H×D) | mm | 1000 x 66 x 1000 | |||
| Shipping Dimensions (W×H×D) | mm | 1093 x 85 x 1083 | |||
