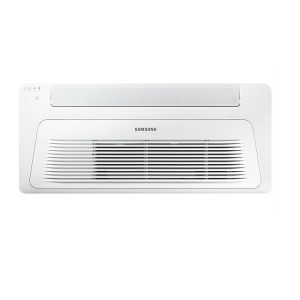

Thông số kỹ thuật dàn lạnh AM028NN1DKH/EU :
Type | Wind-Free 1Way Cassette | ||||
Model | AM028NN1DKH/EU | ||||
Power Supply | Φ, #, V, Hz | 1,2,220-240,50 | |||
Mode | – | HP/HR | |||
Performance | Capacity (Nominal) | Cooling 2) | kW | 2.80 | |
Btu/h | 9,600 | ||||
Heating 2) | kW | 3.20 | |||
Btu/h | 10,900 | ||||
Power | Power Input (Nominal) | Cooling 1) | W | 45.00 | |
Heating 2) | 45.00 | ||||
Current Input (Nominal) | Cooling 1) | A | 0.23 | ||
Heating 2) | 0.23 | ||||
Fan | Type | – | Crossflow Fan | ||
Motor | Output x n | W | 17 x 1 | ||
Air Flow Rate | H/M/L (UL) | CMM | 7.00/6.00/5.00 | ||
l/s | 116.67/100.00/83.33 | ||||
External Pressure | Min / Std / Max | mmAq | – | ||
Pa | – | ||||
Piping Connections | Liquid Pipe | Φ,mm | 6.35 | ||
Φ, inch | 1/4″ | ||||
Gas Pipe | Φ,mm | 12.70 | |||
Φ, inch | 1/2″ | ||||
Drain Pipe | Φ,mm | VP20 (OD 25,ID 20) | |||
Field Wiring | Power Source Wire | mm2 | 1.5 ~ 2.5 | ||
Transmission Cable | mm2 | 0.75 ~ 1.5 | |||
Refrigerant | Type | – | R410A | ||
Control Method | – | EEV INCLUDED | |||
Sound | Sound Pressure | High / Mid / Low | dB(A) | 32.0/28.0/24.0 | |
Sound Power | Cooling | 50.0 | |||
Dimensions | Net Weight | kg | 10.00 | ||
Shipping Weight | kg | 12.80 | |||
Net Dimensions (W×H×D) | mm | 970 x 135 x 410 | |||
Shipping Dimensions (W×H×D) | mm | 1164 x 212 x 478 | |||
Panel Size | Panel model | – | PC1NWFMAN | ||
Panel Net Weight | kg | 5.50 | |||
Shipping Weight | kg | 7.20 | |||
Net Dimensions (W×H×D) | mm | 1198 x 25 x 500 | |||
Shipping Dimensions (W×H×D) | mm | 1262 x 122 x 566 |
