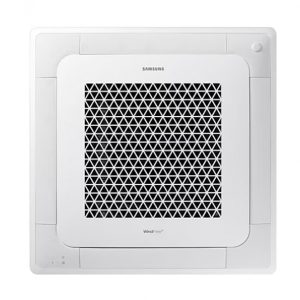

Thông số kỹ thuật dàn lạnh AM128NN4DEH/EU :
Type | Wind-Free 4Way Cassette | ||||
Model | AM128NN4DEH/EU | ||||
Power Supply | Φ, #, V, Hz | 1,2,220-240,50 | |||
Mode | – | HP/HR | |||
Performance | Capacity (Nominal) | Cooling 2) | kW | 12.80 | |
Btu/h | 43,700 | ||||
Heating 2) | kW | 13.80 | |||
Btu/h | 47,100 | ||||
Power | Power Input (Nominal) | Cooling 1) | W | 73.00 | |
Heating 2) | 73.00 | ||||
Current Input (Nominal) | Cooling 1) | A | 0.51 | ||
Heating 2) | 0.51 | ||||
Fan | Type | – | Turbo Fan | ||
Motor | Output x n | W | 97 x 1 | ||
Air Flow Rate | H/M/L (UL) | CMM | 28.00/26.00/23.00 | ||
l/s | 466.67/433.33/383.33 | ||||
External Pressure | Min / Std / Max | mmAq | – | ||
Pa | – | ||||
Piping Connections | Liquid Pipe | Φ,mm | 9.52 | ||
Φ, inch | 3/8″ | ||||
Gas Pipe | Φ,mm | 15.88 | |||
Φ, inch | 5/8″ | ||||
Drain Pipe | Φ,mm | VP25 (OD 32,ID 25) | |||
Field Wiring | Power Source Wire | mm2 | 1.5 ~ 2.5 | ||
Transmission Cable | mm2 | 0.75 ~ 1.5 | |||
Refrigerant | Type | – | R410A | ||
Control Method | – | EEV INCLUDED | |||
Sound | Sound Pressure | High / Mid / Low | dB(A) | 42.0/40.0/35.0 | |
Sound Power | Cooling | 58.0 | |||
Dimensions | Net Weight | kg | 18.50 | ||
Shipping Weight | kg | 22.50 | |||
Net Dimensions (W×H×D) | mm | 840 x 288 x 840 | |||
Shipping Dimensions (W×H×D) | mm | 898 x 357 x 898 | |||
Panel Size | Panel model | – | PC4NUSKAN | ||
Panel Net Weight | kg | 5.80 | |||
Shipping Weight | kg | 8.40 | |||
Net Dimensions (W×H×D) | mm | 950 x 45 x 950 | |||
Shipping Dimensions (W×H×D) | mm | 1005 x 100 x 1005 | |||
Additional Accessories | Drain pump | Drain pump | – / 모델명 | – | |
Max. lifting Height / Displacement | mm / liter/h | – | |||
Air Filter | – | – |
